| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | QJ0000 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 0.4-5 per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 sets per month |
| Keywords: | Full Tension Splice For ACSR | Material: | Aluminum Alloy |
|---|---|---|---|
| Application: | Power Transmission\Power Substations | Product Length: | 300-1800mm |
| Grip Strenth: | Not Less Than 95% RBS Of Conductor | Helical Direction: | Right Hand Is Standard |
| Sandard: | GB,or According To Customer Requirement | Customized Products: | Yes |
| Highlight: | ACSR Preformed Conductor Splice,Preformed Aluminum Wire Conductor Splice,Preformed Full Tension Splice |
||

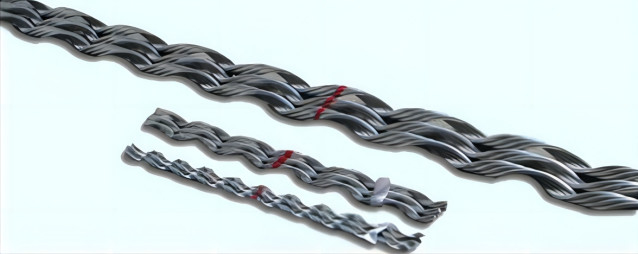

Full tension splice for ACSR
The Full Tension Splice for ACSR is meticulously crafted as a three-component assembly, purpose-built for ACSR splicing needs. Specifically designed for restorative repairs on the core-damaged conductors of ACSR cables, this splice showcases exceptional engineering. Its holding strength is guaranteed to be no less than 95% of the rated breaking strength of the conductor, ensuring optimal performance even after repairs.
The splice restores conductor integrity, improves conductance, and surpasses unspliced counterparts. Installation demands precision for success, reserved for skilled professionals.
| Application Area | Scope of Use |
|---|---|
| Power Transmission | Repair damaged ACSR conductors to ensure power transmission |
| Cable Distribution | Restore integrity and conductivity in cable distribution systems |
| Power Substations | Improve maintenance and transmission within power substations |
| Communication Base Stations | Repair communication base station conductors |
| Industrial Usage | Repair conductors in industrial environments |
| Urban Infrastructure | Restore power connectivity for urban lighting, facilities |
| Emergency Communication | Restore critical communication lines in emergencies |
| Renewable Energy Projects | Maintain power transmission in renewable energy projects |
| Model | Suitable Conductor Dia(mm) | GB1179-1983 Suitable Conductor | Color Code | Clamp Length(mm) |
|
| MIN | MAX | LGJ/LGJF Steel Reinforced Aluminium Conductor | |||
| TJ 4110 | 4.40 | 4.90 | 10/2 | Red | 535 |
| TJ 4111 | 5.30 | 5.70 | 16/3 | Yellow | 585 |
| TJ 4112 | 6.60 | 7.10 | 25/4 | Blue | 695 |
| TJ 4113 | 8.00 | 8.60 | 35/6 | Green | 510 |
| TJ 4114 | 9.40 | 9.80 | 50/8 | Black | 635 |
| TJ 4115 | 11.30 | 11.75 | 50/30,70/10 | Red | 645 |
| TJ 4116 | 13.30 | 13.80 | 70/40,95/15 | Yellow | 785 |
| TJ 4117 | 13.81 | 14.00 | 95/20 | Blue | 795 |
| TJ 4118 | 14.41 | 15.10 | 120/7,120/20 | Green | 930 |
| TJ 4119 | 15.60 | 16.20 | 95/55,120/25,150/8 | Black | 990 |
| TJ 4120 | 16.50 | 17.00 | 150/20 | Red | 1020 |
| TJ 4121 | 17.01 | 17.60 | 150/25,150/35 | Yellow | 1060 |
| TJ 4122 | 17.80 | 18.20 | 120/70,185/10 | Blue | 1100 |
| TJ 4123 | 18.60 | 19.20 | 185/25,185/30,210/10 | Green | 1126 |
| TJ 4124 | 19.50 | 20.10 | 185/45,210/25 | Black | 1183 |
| TJ 4125 | 20.20 | 20.96 | 210/35,210/50 | Red | 1195 |
| TJ 4126 | 21.50 | 21.64 | 240/30 | Yellow | 1223 |
| TJ 4127 | 21.65 | 22.50 | 240/40,240/55 | Blue | 1411 |
| TJ 4128 | 22.90 | 23.50 | 300/15,300/20 | Green | 1471 |
| TJ 4129 | 23.60 | 24.30 | 300/25,300/40,300/50 | Black | 1510 |
| TJ 4130 | 24.90 | 25.40 | 300/70 | Red | 1497 |
| TJ 4131 | 26.50 | 27.10 | 400/20,400/25,400/35 | Green | 1631 |
| TJ 4132 | 27.50 | 27.90 | 400/50 | Blue | 1615 |
| TJ 4133 | 27.91 | 28.20 | 400/65 | Green | 1747 |
| TJ 4134 | 29.00 | 29.50 | 400/95 | Black | 1793 |
| TJ 4135 | 29.80 | 30.20 | 500/35,500/45 | Red | 1805 |
| TJ 4136 | 30.80 | 31.20 | 500/65 | Yellow | 1818 |
Products can be customized according to customer requirements.
