| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | QJ0000 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 0.4-5 per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 sets per month |
| Name: | Full Tension Aluminum Wire Conductor Splice | Material: | Aluminum Alloy |
|---|---|---|---|
| Product Length: | 300-1800mm | Grip Strenth: | Not Less Than 95% RBS Of Conductor |
| Helical Direction: | Right Hand Is Standard | Sandard: | GB,or According To Customer Requirement |
| Customized Products: | Yes | Service: | ODM OEM |
| Highlight: | Aluminum Wire Conductor Preformed Splice,Full Tension Conductor Preformed Splice,ACSR Preformed Splice |
||

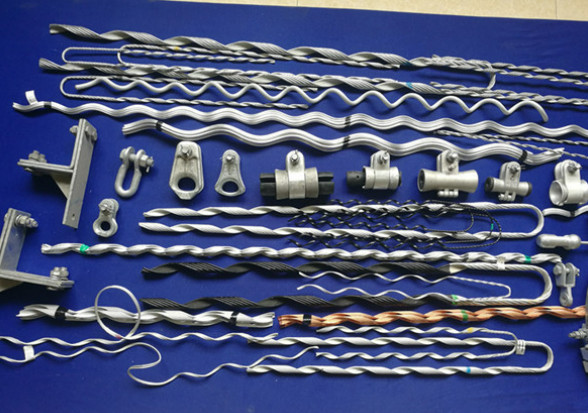

Full tension splice for ACSR
The "Full Tension Splice for ACSR" is expertly designed as a three-component assembly, tailored to ACSR splicing needs. Specifically created to restore core-damaged ACSR conductor sections, this splice exemplifies exceptional engineering.
Key points:
Holding Strength: Guaranteed at minimum 95% of rated conductor breaking strength for enduring performance post-repair.
Enhanced Conductance: Not only restores integrity but also surpasses unspliced conductors in conductance.
Installation Precision: Successful setup hinges on meticulous attention and adherence to proper installation techniques.
Skilled Application: Reserved solely for skilled craftspeople who understand its intricate application.
| Feature | Description |
|---|---|
| Design | Three-component assembly designed for ACSR splicing needs |
| Purpose | Used for restorative repair of core-damaged ACSR conductors |
| Strength | Holding strength guaranteed ≥ 95% of rated breaking strength |
| Conductance | Enhances conductance, surpasses unspliced conductors |
| Installation Care | Meticulous attention required for successful setup |
| Technical Demand | Intended exclusively for skilled craftspeople |
| Material | Galvanized steel, aluminum clad steel, aluminum alloy |
| Applicable Length |
300-1800mm or customized per customer requirements |
| Model | Suitable Conductor Dia(mm) | GB1179-1983 Suitable Conductor | Color Code | Clamp Length(mm) |
|
| MIN | MAX | LGJ/LGJF Steel Reinforced Aluminium Conductor | |||
| TJ 4110 | 4.40 | 4.90 | 10/2 | Red | 535 |
| TJ 4111 | 5.30 | 5.70 | 16/3 | Yellow | 585 |
| TJ 4112 | 6.60 | 7.10 | 25/4 | Blue | 695 |
| TJ 4113 | 8.00 | 8.60 | 35/6 | Green | 510 |
| TJ 4114 | 9.40 | 9.80 | 50/8 | Black | 635 |
| TJ 4115 | 11.30 | 11.75 | 50/30,70/10 | Red | 645 |
| TJ 4116 | 13.30 | 13.80 | 70/40,95/15 | Yellow | 785 |
| TJ 4117 | 13.81 | 14.00 | 95/20 | Blue | 795 |
| TJ 4118 | 14.41 | 15.10 | 120/7,120/20 | Green | 930 |
| TJ 4119 | 15.60 | 16.20 | 95/55,120/25,150/8 | Black | 990 |
| TJ 4120 | 16.50 | 17.00 | 150/20 | Red | 1020 |
| TJ 4121 | 17.01 | 17.60 | 150/25,150/35 | Yellow | 1060 |
| TJ 4122 | 17.80 | 18.20 | 120/70,185/10 | Blue | 1100 |
| TJ 4123 | 18.60 | 19.20 | 185/25,185/30,210/10 | Green | 1126 |
| TJ 4124 | 19.50 | 20.10 | 185/45,210/25 | Black | 1183 |
| TJ 4125 | 20.20 | 20.96 | 210/35,210/50 | Red | 1195 |
| TJ 4126 | 21.50 | 21.64 | 240/30 | Yellow | 1223 |
| TJ 4127 | 21.65 | 22.50 | 240/40,240/55 | Blue | 1411 |
| TJ 4128 | 22.90 | 23.50 | 300/15,300/20 | Green | 1471 |
| TJ 4129 | 23.60 | 24.30 | 300/25,300/40,300/50 | Black | 1510 |
| TJ 4130 | 24.90 | 25.40 | 300/70 | Red | 1497 |
| TJ 4131 | 26.50 | 27.10 | 400/20,400/25,400/35 | Green | 1631 |
| TJ 4132 | 27.50 | 27.90 | 400/50 | Blue | 1615 |
| TJ 4133 | 27.91 | 28.20 | 400/65 | Green | 1747 |
| TJ 4134 | 29.00 | 29.50 | 400/95 | Black | 1793 |
| TJ 4135 | 29.80 | 30.20 | 500/35,500/45 | Red | 1805 |
| TJ 4136 | 30.80 | 31.20 | 500/65 | Yellow | 1818 |
Products can be customized according to customer requirements.
