| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | FYH 0000 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 0.4-5 per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000 sets per month |
| Features: | Corrosion Resistance, Shock Resistance, Easy Installation | Name: | Preformed Armor Rods |
|---|---|---|---|
| Material: | Galvanized Steel , Aluminum Clad Steel, Aluminum Alloyl | Advantages: | Durability Corrosion Resistant |
| Product Length: | 300-1800mm | Helical Direction: | Right Hand Is Standard |
| Service: | Customized Products | Usage: | Power Transmission Lines, Pylons And Towers |
| Highlight: | Galvanized Steel Preformed Armor Rods,Corrosion Resistant Preformed Armor Rods,Towers Preformed Armour Rod |
||

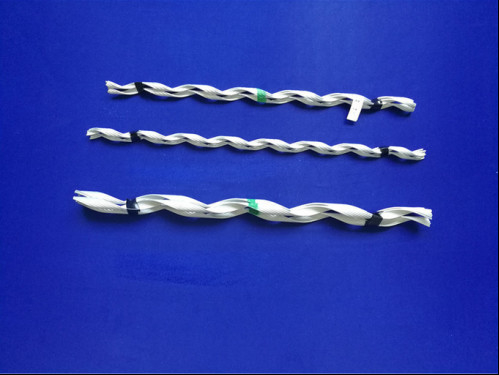

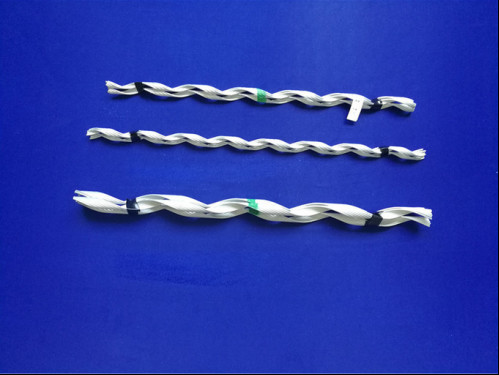

Preformed Armor Rod is a device used to protect cables or wires in power lines. Prefabricated armor clips are usually made of special materials that provide the required mechanical protection of cables or wires from the influence of the external environment.
Advantages
Easy Installation: This means that the design and construction of this prefabricated armor clip makes it very easy to handle during installation. It may be equipped with special mechanisms that allow it to be installed quickly and efficiently on power lines without complex tools or specialized skills.
Durability: The durability of a product means that it maintains its performance and function over time and is not susceptible to wear, corrosion, or other damage. This is especially important in the power industry, where lines often require long-term stable operation.
Shock Resistance: The shock resistance of a product refers to its performance in the event of an earthquake or other shock. The unit may be designed with some shock resistance to ensure that the cables or wires remain connected even in the event of shock or shock, reducing the risk of service interruption.
Armor rods for ACSR
| Model | Conductor Dia. (mm) | Rod Dia. (mm) | Length (mm) | No.of rods | Weight (kg) |
| FYH-95/15 | 13.61 | 3.6 | 1400 | 13 | 0.53 |
| FYH-95/20 | 13.87 | 3.6 | 1400 | 13 | 0.53 |
| FYH-95/55 | 16 | 3.6 | 1500 | 16 | 0.7 |
| FYH-120/7 | 14.5 | 3.6 | 1400 | 14 | 0.57 |
| FYH-120/20 | 15.07 | 3.6 | 1400 | 14 | 0.57 |
| FYH-120/25 | 15.74 | 3.6 | 1400 | 14 | 0.57 |
| FYH-120/70 | 18 | 4.6 | 1800 | 14 | 1.21 |
| FYH-150/8 | 16 | 3.6 | 1500 | 16 | 0.7 |
| FYH-150/20 | 16.67 | 3.6 | 1500 | 16 | 0.7 |
| FYH-150/25 | 17.1 | 3.6 | 1500 | 16 | 0.7 |
| FYH-150/35 | 17.5 | 3.6 | 1500 | 16 | 0.7 |
| FYH-185/10 | 18 | 4.6 | 1800 | 14 | 1.21 |
| FYH-185/25 | 18.9 | 4.6 | 1800 | 14 | 1.21 |
| FYH-185/30 | 18.88 | 4.6 | 1800 | 14 | 1.21 |
| FYH-185/45 | 19.6 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/10 | 19 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/25 | 19.98 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/35 | 20.38 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/50 | 20.86 | 4.6 | 1800 | 14 | 1.21 |
| FYH-240/30 | 21.6 | 4.6 | 1900 | 16 | 1.46 |
| FYH-240/40 | 21.66 | 4.6 | 1900 | 16 | 1.46 |
| FYH-240/55 | 22.4 | 4.6 | 1900 | 16 | 1.46 |
| FYH-300/15 | 23.01 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/20 | 23.43 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/25 | 23.76 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/40 | 23.94 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/50 | 24.26 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/70 | 25.2 | 6.3 | 2000 | 13 | 2.34 |
| FYH-400/20 | 26.91 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/25 | 26.64 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/35 | 26.82 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/50 | 27.63 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/65 | 28 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/95 | 29.14 | 6.3 | 2200 | 14 | 2.77 |
| FYH-500/35 | 30 | 6.3 | 2500 | 16 | 3.59 |
| FYH-500/45 | 30 | 6.3 | 2500 | 16 | 3.59 |
| FYH-500/65 | 30.96 | 6.3 | 2500 | 16 | 3.59 |
| FYH-630/45 | 33.6 | 7.8 | 2500 | 15 | 5.16 |
| FYH-630/55 | 34.32 | 7.8 | 2500 | 15 | 5.16 |
| FYH-630/80 | 34.82 | 7.8 | 2500 | 15 | 5.16 |
| FYH-720/50 | 36.23 | 7.8 | 2500 | 15 | 5.16 |
| FYH-800/55 | 38.4 | 9.2 | 2500 | 13 | 6.23 |
| FYH-800/70 | 38.58 | 9.2 | 2500 | 13 | 6.23 |
| FYH-800/100 | 38.98 | 9.2 | 2500 | 13 | 6.23 |
| FYH-900/40 | 39.9 | 9.2 | 3000 | 14 | 8.05 |
| FYH-900/45 | 42.1 | 9.2 | 3000 | 16 | 9.2 |
Products can be customized according to customer requirements.
