| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | FYH 0000 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 0.4-5 per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000 sets per month |
| Features: | Wide Choice Of Materials, Versatility | Name: | Preformed Armor Rods |
|---|---|---|---|
| Material: | Galvanized Steel , Aluminum Clad Steel, Aluminum Alloyl | Advantages: | Durability Corrosion Resistant |
| Product Length: | 300-1800mm | Helical Direction: | Right Hand Is Standard |
| Service: | Customized Products | Usage: | Power Transmission Lines, Pylons And Towers |
| Highlight: | 6.3mm Preformed Armour Rods,Corrosion Resistant Preformed Armour Rods,Customized Preformed Armor Rods |
||

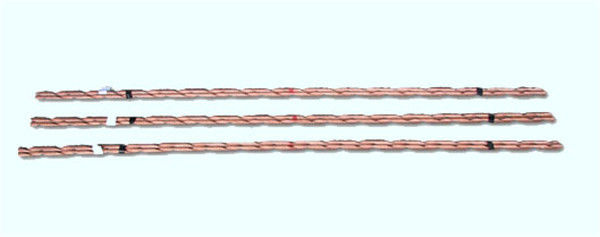

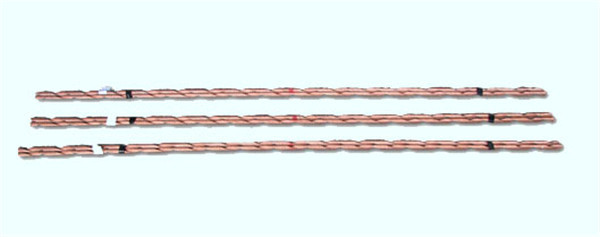

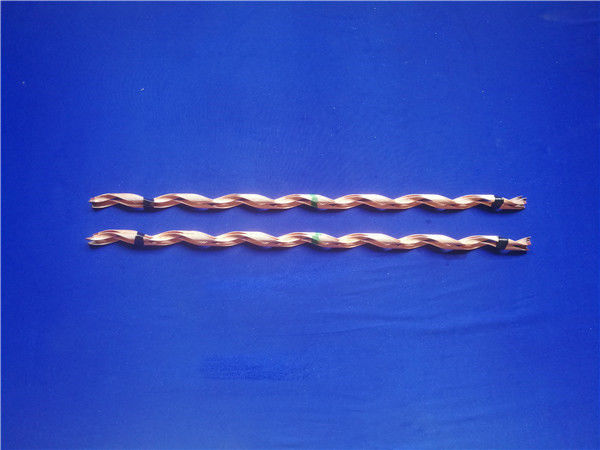

Introduction
Made of galvanized steel wire, aluminum-clad steel wire or aluminum alloy, prefabricated armored poles are key components in utility infrastructure. Preformed rods are engineered to protect strands and conductors from the dangers of bending, compression, abrasion, and damage caused by electrical arcing, while providing repair potential.
Material Varieties: Preformed armor rods are crafted from different materials such as galvanized steel wire, aluminum-clad steel wire, or aluminum alloy. These materials are selected for their distinct properties, each contributing to the overall performance and durability of the armor rods.
Functional Purpose: Designed with precision, these armor rods play a critical role in safeguarding strands and conductors within utility infrastructure. They provide vital protection against various forms of stress and damage, including bending, compression, abrasion, and potential arc-related harm.
Installation Complexity: During the installation process, a high level of attention to detail is necessary to ensure proper placement and effectiveness. Precise installation methodologies are crucial to maximize the armor rods' protective benefits and minimize the risks associated with improper application.
Professional Utilization: These specialized products are not intended for casual or untrained handling. Their usage should be exclusively entrusted to skilled craftsmen who possess the necessary training and expertise to guarantee accurate installation and optimal functionality, aligning with the intricacies of utility infrastructure.
Armor rods for ACSR
| Model | Conductor Dia. (mm) | Rod Dia. (mm) | Length (mm) | No.of rods | Weight (kg) |
| FYH-95/15 | 13.61 | 3.6 | 1400 | 13 | 0.53 |
| FYH-95/20 | 13.87 | 3.6 | 1400 | 13 | 0.53 |
| FYH-95/55 | 16 | 3.6 | 1500 | 16 | 0.7 |
| FYH-120/7 | 14.5 | 3.6 | 1400 | 14 | 0.57 |
| FYH-120/20 | 15.07 | 3.6 | 1400 | 14 | 0.57 |
| FYH-120/25 | 15.74 | 3.6 | 1400 | 14 | 0.57 |
| FYH-120/70 | 18 | 4.6 | 1800 | 14 | 1.21 |
| FYH-150/8 | 16 | 3.6 | 1500 | 16 | 0.7 |
| FYH-150/20 | 16.67 | 3.6 | 1500 | 16 | 0.7 |
| FYH-150/25 | 17.1 | 3.6 | 1500 | 16 | 0.7 |
| FYH-150/35 | 17.5 | 3.6 | 1500 | 16 | 0.7 |
| FYH-185/10 | 18 | 4.6 | 1800 | 14 | 1.21 |
| FYH-185/25 | 18.9 | 4.6 | 1800 | 14 | 1.21 |
| FYH-185/30 | 18.88 | 4.6 | 1800 | 14 | 1.21 |
| FYH-185/45 | 19.6 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/10 | 19 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/25 | 19.98 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/35 | 20.38 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/50 | 20.86 | 4.6 | 1800 | 14 | 1.21 |
| FYH-240/30 | 21.6 | 4.6 | 1900 | 16 | 1.46 |
| FYH-240/40 | 21.66 | 4.6 | 1900 | 16 | 1.46 |
| FYH-240/55 | 22.4 | 4.6 | 1900 | 16 | 1.46 |
| FYH-300/15 | 23.01 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/20 | 23.43 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/25 | 23.76 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/40 | 23.94 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/50 | 24.26 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/70 | 25.2 | 6.3 | 2000 | 13 | 2.34 |
| FYH-400/20 | 26.91 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/25 | 26.64 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/35 | 26.82 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/50 | 27.63 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/65 | 28 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/95 | 29.14 | 6.3 | 2200 | 14 | 2.77 |
| FYH-500/35 | 30 | 6.3 | 2500 | 16 | 3.59 |
| FYH-500/45 | 30 | 6.3 | 2500 | 16 | 3.59 |
| FYH-500/65 | 30.96 | 6.3 | 2500 | 16 | 3.59 |
| FYH-630/45 | 33.6 | 7.8 | 2500 | 15 | 5.16 |
| FYH-630/55 | 34.32 | 7.8 | 2500 | 15 | 5.16 |
| FYH-630/80 | 34.82 | 7.8 | 2500 | 15 | 5.16 |
| FYH-720/50 | 36.23 | 7.8 | 2500 | 15 | 5.16 |
| FYH-800/55 | 38.4 | 9.2 | 2500 | 13 | 6.23 |
| FYH-800/70 | 38.58 | 9.2 | 2500 | 13 | 6.23 |
| FYH-800/100 | 38.98 | 9.2 | 2500 | 13 | 6.23 |
| FYH-900/40 | 39.9 | 9.2 | 3000 | 14 | 8.05 |
| FYH-900/45 | 42.1 | 9.2 | 3000 | 16 | 9.2 |
Products can be customized according to customer requirements.
