| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | FYH 0000 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 0.4-5 per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000 sets per month |
| Features: | Corrosion Resistant | Material: | Galvanized Steel , Aluminum Clad Steel, Aluminum Alloyl |
|---|---|---|---|
| Product Length: | 300-1800mm | Helical Direction: | Right Hand Is Standard |
| Customized Products: | Yes | Usage: | Power Transmission Lines, Pylons And Towers |
| Highlight: | Power Transmission Lines Armor Rods,Anti Corrosion Preformed Armor Rods,6.3mm Preformed Armour Rod |
||
Introduction

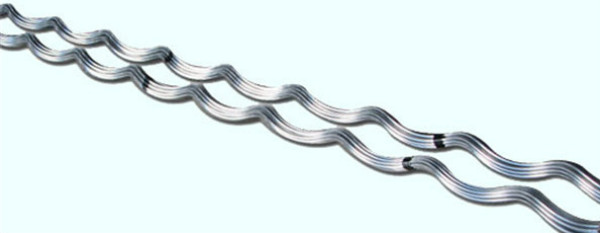

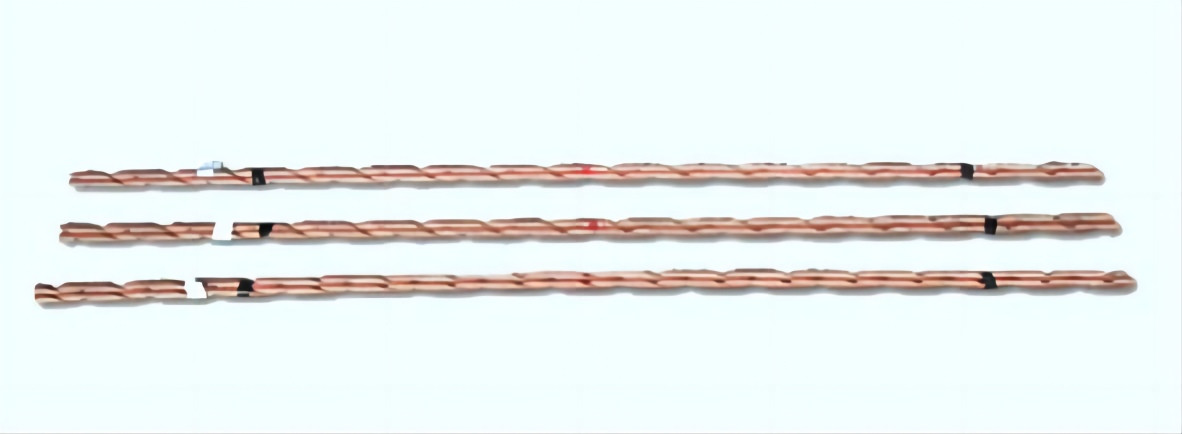

Made of galvanized steel wire, aluminum-clad steel wire or aluminum alloy, prefabricated armored poles are key components in utility infrastructure. Preformed rods are engineered to protect strands and conductors from the dangers of bending, compression, abrasion, and damage caused by electrical arcing, while providing repair potential.
Installation Precautions
During the installation process, we must be meticulous to ensure the accuracy of each installation. It is important to realize that the use of this product is exclusively for skilled and trained artisans, consistent with its specialization and sophistication.
Armor rods for ACSR
| Model | Conductor Dia. (mm) | Rod Dia. (mm) | Length (mm) | No.of rods | Weight (kg) |
| FYH-95/15 | 13.61 | 3.6 | 1400 | 13 | 0.53 |
| FYH-95/20 | 13.87 | 3.6 | 1400 | 13 | 0.53 |
| FYH-95/55 | 16 | 3.6 | 1500 | 16 | 0.7 |
| FYH-120/7 | 14.5 | 3.6 | 1400 | 14 | 0.57 |
| FYH-120/20 | 15.07 | 3.6 | 1400 | 14 | 0.57 |
| FYH-120/25 | 15.74 | 3.6 | 1400 | 14 | 0.57 |
| FYH-120/70 | 18 | 4.6 | 1800 | 14 | 1.21 |
| FYH-150/8 | 16 | 3.6 | 1500 | 16 | 0.7 |
| FYH-150/20 | 16.67 | 3.6 | 1500 | 16 | 0.7 |
| FYH-150/25 | 17.1 | 3.6 | 1500 | 16 | 0.7 |
| FYH-150/35 | 17.5 | 3.6 | 1500 | 16 | 0.7 |
| FYH-185/10 | 18 | 4.6 | 1800 | 14 | 1.21 |
| FYH-185/25 | 18.9 | 4.6 | 1800 | 14 | 1.21 |
| FYH-185/30 | 18.88 | 4.6 | 1800 | 14 | 1.21 |
| FYH-185/45 | 19.6 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/10 | 19 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/25 | 19.98 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/35 | 20.38 | 4.6 | 1800 | 14 | 1.21 |
| FYH-210/50 | 20.86 | 4.6 | 1800 | 14 | 1.21 |
| FYH-240/30 | 21.6 | 4.6 | 1900 | 16 | 1.46 |
| FYH-240/40 | 21.66 | 4.6 | 1900 | 16 | 1.46 |
| FYH-240/55 | 22.4 | 4.6 | 1900 | 16 | 1.46 |
| FYH-300/15 | 23.01 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/20 | 23.43 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/25 | 23.76 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/40 | 23.94 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/50 | 24.26 | 6.3 | 2000 | 13 | 2.34 |
| FYH-300/70 | 25.2 | 6.3 | 2000 | 13 | 2.34 |
| FYH-400/20 | 26.91 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/25 | 26.64 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/35 | 26.82 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/50 | 27.63 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/65 | 28 | 6.3 | 2200 | 14 | 2.77 |
| FYH-400/95 | 29.14 | 6.3 | 2200 | 14 | 2.77 |
| FYH-500/35 | 30 | 6.3 | 2500 | 16 | 3.59 |
| FYH-500/45 | 30 | 6.3 | 2500 | 16 | 3.59 |
| FYH-500/65 | 30.96 | 6.3 | 2500 | 16 | 3.59 |
| FYH-630/45 | 33.6 | 7.8 | 2500 | 15 | 5.16 |
| FYH-630/55 | 34.32 | 7.8 | 2500 | 15 | 5.16 |
| FYH-630/80 | 34.82 | 7.8 | 2500 | 15 | 5.16 |
| FYH-720/50 | 36.23 | 7.8 | 2500 | 15 | 5.16 |
| FYH-800/55 | 38.4 | 9.2 | 2500 | 13 | 6.23 |
| FYH-800/70 | 38.58 | 9.2 | 2500 | 13 | 6.23 |
| FYH-800/100 | 38.98 | 9.2 | 2500 | 13 | 6.23 |
| FYH-900/40 | 39.9 | 9.2 | 3000 | 14 | 8.05 |
| FYH-900/45 | 42.1 | 9.2 | 3000 | 16 | 9.2 |
Products can be customized according to customer requirements.
