| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Certification: | T/T, L/C |
| Model Number: | DN1101 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 0.4-5 per set |
| Packaging Details: | Plywood Box or as per customer's request |
| Delivery Time: | 10-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000 sets per month |
| Material: | Hot Dip Galvanized Steel | Name: | Preformed Guy Grip Dead-end Clamp |
|---|---|---|---|
| Helical Direction: | Right Hand Is Standard | Clevis Thimble: | Steel |
| Dead-end Cable Grip: | Aluminum Clad Steel | Inner Rod: | Aluminum Clad Steel |
| Highlight: | Steel Guy Grip Dead End,Guy Grip Dead End Clamp |
||

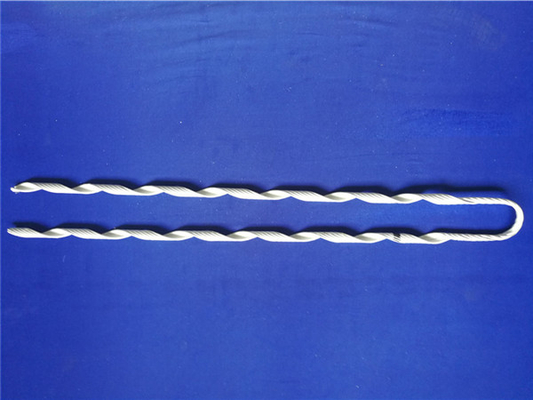

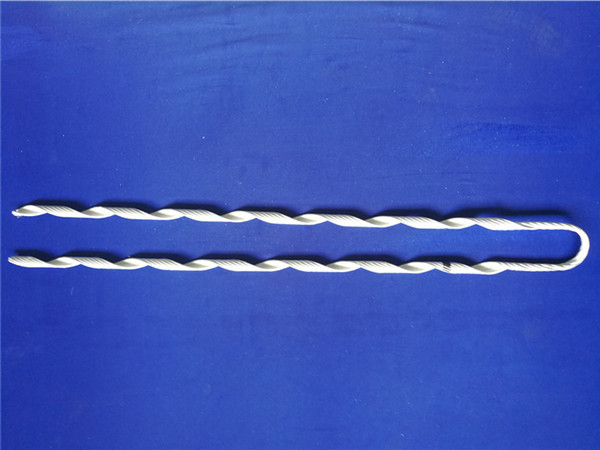

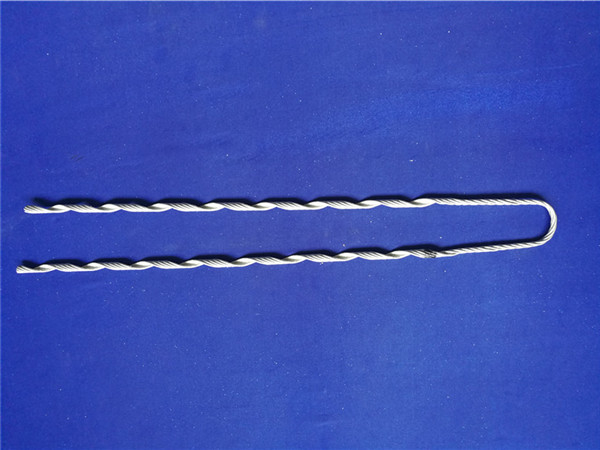

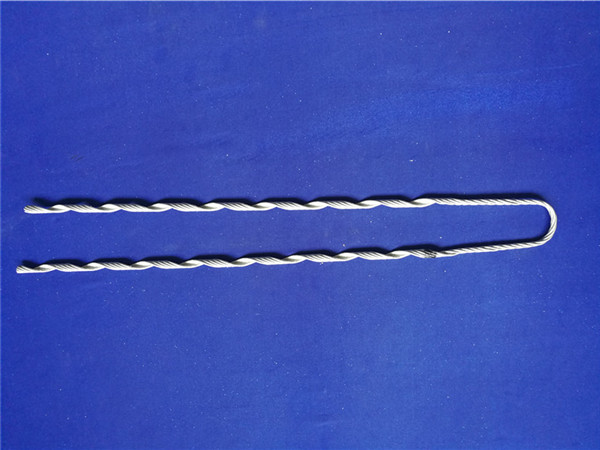

Preformed Guy Grip Dead-End Clamp To Customer Requirement Black Color
A "preformed dead end" is a type of electrical line connector commonly used in high-voltage transmission lines or power distribution systems. It is a pre-shaped cable termination used to connect the end of a power line to a cable.
The preformed dead end is typically made of high-strength metal rope or steel wire rope, with a pre-designed shape and structure. It often includes a fixed ring-shaped or flat connector that can be attached to the end of the power line or cable. This preformed design makes the installation process simpler and more efficient.
The primary purpose of using a preformed dead end is to provide a secure connection and insulation support for the power line. It can withstand the tension of high-voltage power lines and ensure that the cable or conductor is securely fixed in place. This connector can also provide mechanical protection for the power line, preventing damage from external environmental factors.
Application:
(1) Terminal pole tower, tension pole/tower,
(2) Pole/tower with corner angles greater than 15°and RTS no more than 10kN
(3) Suitable for city ADSS cable installation.
| Model | Range of Dia. of Cable | Length of Reinforcing Rods (mm) | Length of Outer Rods (mm) | Weight(kg) | Broken Strength(KN) | |
| Minimum(mm) | Maximum(mm) | |||||
| ONY 0780 | 7.2 | 7.8 | 1400 | 1000 | 1.1 | 70 |
| ONY 0880 | 7.9 | 8.8 | 1400 | 1000 | 1.15 | 70 |
| ONY 1010 | 8.9 | 10.1 | 1400 | 1000 | 1.28 | 70 |
| ONY 1140 | 10.2 | 11.4 | 1540 | 1120 | 1.7 | 90 |
| ONY 1280 | 11.5 | 12.8 | 1620 | 1200 | 2.41 | 112 |
| ONY 1410 | 12.9 | 14.1 | 1660 | 1240 | 2.55 | 112 |
| ONY 1550 | 14.2 | 15.5 | 1840 | 1360 | 2.89 | 112 |
| ONY 1730 | 15.6 | 17.3 | 2000 | 1480 | 3.61 | 112 |
| ONY 1920 | 17.4 | 19.2 | 2400 | 1800 | 4.68 | 112 |
| ONY 2110 | 19.3 | 21.1 | 2600 | 2000 | 5.14 | 112 |
Our products range are as following:
We are manufacture for electric power fittings, suspension clamp , ADSS / OPGW cable accessories,preformed guy grips, overhead line fittings, ACSR, hot dip galvanized steel strand,Turnbuckle, thread, nuts, Pole Top Make Off ,bolts, shackle, Tangent Supports,chains, thimble, wire rope grip, tension clamp, insulator fittings and so on.
We have competitive price and high quality, if you are interested ,welcome to send inquiry here ,we can send to you the best price and freely samples.
Our service tenets is:customer first,good quality.Welcome the clients at home and abroad to negotiate and cooperate with us.
