| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | DN2416 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 0.4-5 per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000 sets per month |
| Material: | Galvanized Steel , Aluminum Clad Steel | Product Length: | 300-1800mm |
|---|---|---|---|
| Grip Strenth: | Not Less Than 100% UTS | Helical Direction: | Left Hand Is Standard |
| Sandard: | GB,or According To Customer Requirement | Customized Products: | Yes |
| Highlight: | 5/8inch big grip dead end,heliformed big grip dead end,ADSS heliformed dead end |
||

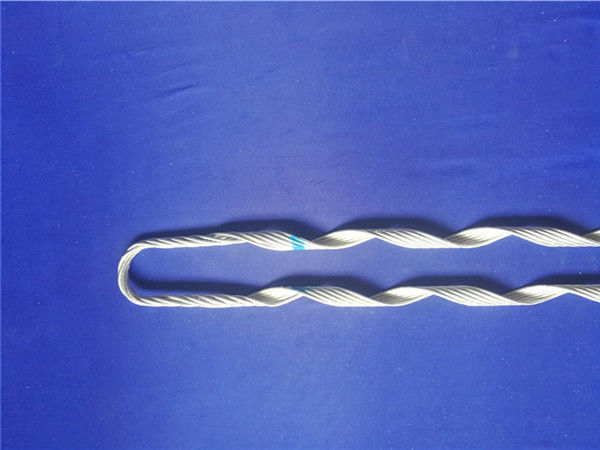

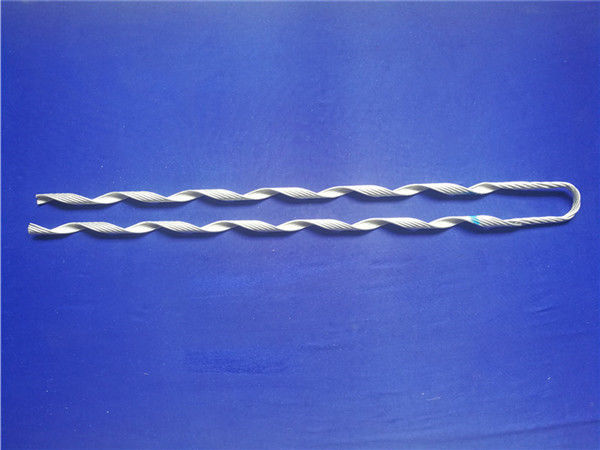

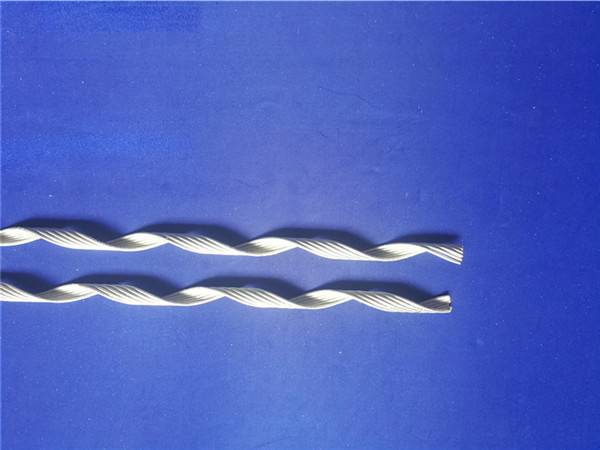

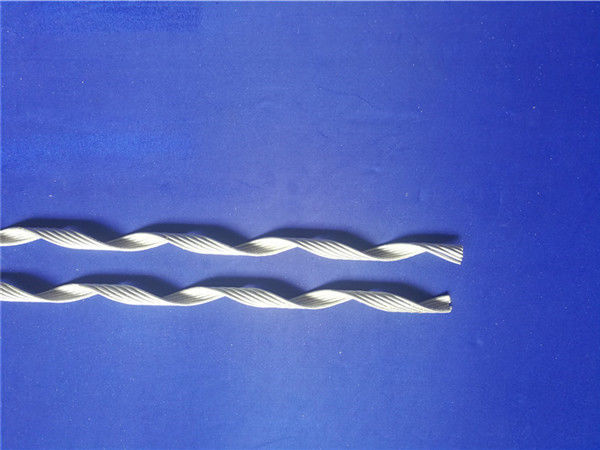

Preformed dead end for strand
Preformed dead end for strand is made of the same basic material as the strand to which it is applied.Common materials are galvanized steel wire and aluminum-clad steel wire .It is intended to design for use on single pole associated with distribution constraction.The product grips the strand uniformly to preven distortion of the strand and the grip strenth is not less than 100%UTS of the strand.During installation,care should be taken to ensure a successful installation .This product is intended for use by trained crafts people only.
| Preformed Dead End for Galvanized steel strand | ||||||||
| Discription | Dia.Range | Type | Wire Size | No.of | Material | Length | Weight | Color Code |
| (mm) | (mm) | rods | (mm) | (kg) | ||||
| EHS 3/16 | 4.7 | DN 2409 | 1.8 | 5 | Galvanized steel | 508 | 0.11 | RED |
| EHS 1/4 | 6.30 | DN 2410 | 2.18 | 5 | Galvanized steel | 635 | 0.2 | YELLOW |
| EHS 5/16 | 7.94 | DN 2411 | 2.54 | 5 | Galvanized steel | 788 | 0.34 | BLACK |
| EHS 3/8 | 9.53 | DN 2412 | 3.02 | 5 | Galvanized steel | 889 | 0.54 | ORANGE |
| EHS 7/16 | 11.11 | DN 2413 | 3.51 | 5 | Galvanized steel | 966 | 0.8 | GREEN |
| EHS 1/2 | 12.70 | DN 2414 | 4.37 | 5 | Galvanized steel | 1245 | 1.59 | BLUE |
| EHS 9/16 | 14.20 | DN 2415 | 4.78 | 5 | Galvanized steel | 1340 | 2.04 | YELLOW |
| EHS 5/8 | 15.88 | DN 2416 | 5.18 | 5 | Galvanized steel | 1626 | 2.9 | BLACK |
| Left hand lay is standard | ||||||||
Products can be customized according to customer requirement.
