| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | FTL 0000 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 0.3-3per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 sets per month |
| Highlight: | <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>PVC aerial vibration damper</h2>, <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>250m ADSS spiral vibration damper</h2>, <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>250m PVC ADSS vibration damper</h2> | ||
|---|---|---|---|
| Highlight: | PVC aerial vibration damper,250m ADSS spiral vibration damper,250m PVC ADSS vibration damper |
||

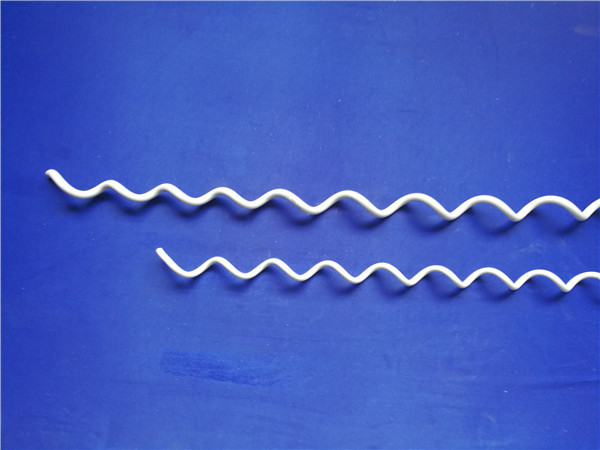

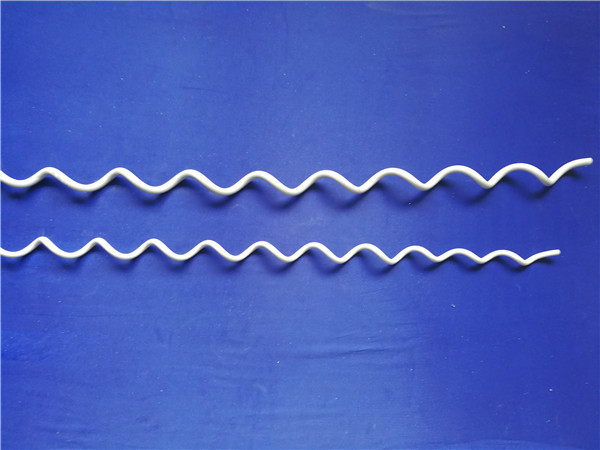

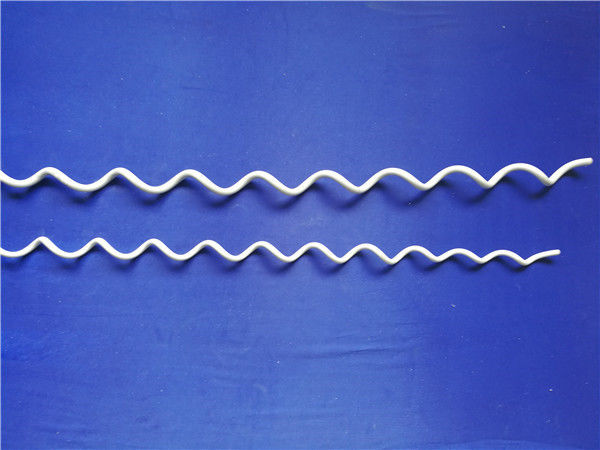

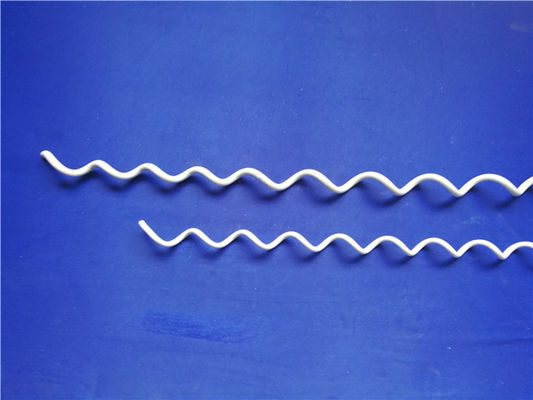

Spiral Vibration Damper
Spiral Vibration Damper is designed to control high frequency Aeolian vibration and is particularly effective on small size earthwires and ADSS cables.The degree of protection needed on a specific line is dependent upon line design,temperature,tension,exposure to windflow and vibration history on similar constraction in the same area.the following recommendations may be used as a general guide.The product is made of polyvinyi chloride(PVC).
| Model | Available Dia of Cable (mm) | Length of fastening End (mm) | Total Length (mm) | Weight(kg) |
| FTL 1170 130 | 8.30-11.70 | 250 | 1300 | 0.28 |
| FTL 1430 135 | 11.71-14.30 | 250 | 1350 | 0.3 |
| FTL 1930 167 | 14.31-19.30 | 330 | 1670 | 0.66 |
Products can be customized according to customer requirements.
100-250m,2 per span(one on each side of support point)
250-400m,4 per span(two on each side of support point)
400-800m,6 per span(three on each side of support point)
800-1000m,8 per span(four on each side of support point)
| Span | Number/Span |
| <100M | 0 |
| 100-250 | 2 |
| 250-400 | 4 |
| 400-800 | 6 |
| 800-1000 | 8 |
