| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | TP8000 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 0.4-5 per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 sets per month |
| Material: | Aluminum Clad Steel | Helical Direction: | Right Hand Is Standard |
|---|---|---|---|
| Sandard: | GB,or According To Customer Requirement | Customized Products: | Yes |
| Highlight: | <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>2 rods Preformed Wire Ties</h2>, <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>2 rods Preformed side ties</h2>, <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>4.83mm Preformed Wire Ties</h2> | ||
| Highlight: | 2 rods Preformed Wire Ties,2 rods Preformed side ties,4.83mm Preformed Wire Ties |
||

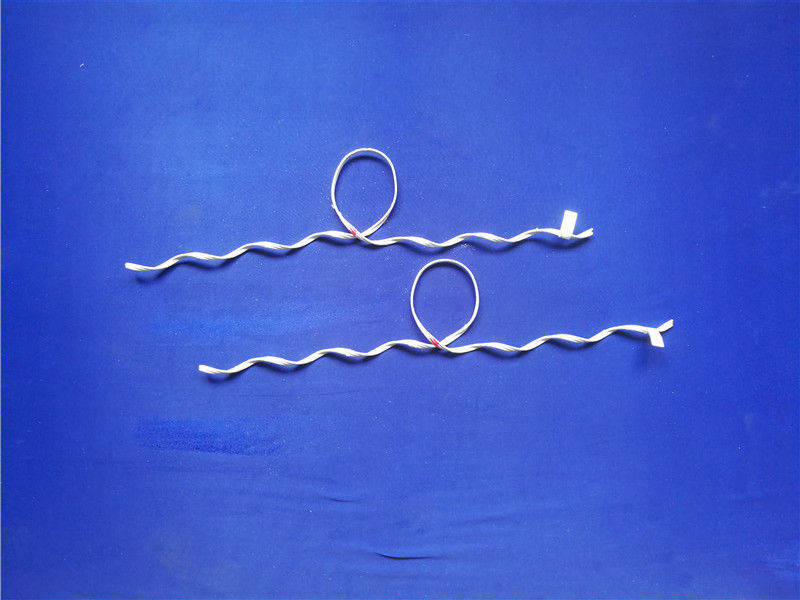

Side ties
Side ties are made of aluminum clad steel,and are designed to secure bare conductor and plastic jacketed conductor in the side groove of interchangeable head style insulators and provide superior abrasion protection for the conductor.In case that the ties apply on plastic jacketed conductor,the tube can be disposed of.To ensure proper fit,it is necessary to provide dimension of insulator,especially neck diameter.During installation,care should be taken to ensure a successful installation .This product is intended for use by trained crafts people only.
| Side ties for bare conductor and insulated conductor | ||||
| Medel of bare conductor | Medel of insulated conductor | Dia.of conductor | No.of rods | |
| Min. | Max. | |||
| P8100A | P8200A | 4.83 | 5.46 | 2 |
| P8101A | P8201A | 5.47 | 6.20 | |
| P8102A | P8202A | 6.21 | 7.04 | |
| P8103A | P8203A | 7.05 | 8.00 | |
| P8104A | P8204A | 8.01 | 9.07 | |
| P8105A | P8205A | 9.08 | 10.29 | |
| P8106A | P8206A | 10.30 | 11.66 | |
| P8107A | P8207A | 11.67 | 13.21 | |
| P8108A | P8208A | 13.22 | 14.94 | |
| P8109A | P8209A | 14.95 | 16.89 | |
| P8110A | P8210A | 16.90 | 19.18 | |
| P8111A | P8211A | 19.20 | 21.79 | |
| P8112A | P8212A | 21.82 | 24.59 | |
Products can be customized according to customer requiremts.
.
