| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | QJ0000 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 0.4-5 per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 sets per month |
| Material: | Aluminum Alloy | Product Length: | 300-1800mm |
|---|---|---|---|
| Grip Strenth: | Not Less Than 95% RBS Of Conductor | Helical Direction: | Right Hand Is Standard |
| Sandard: | GB,or According To Customer Requirement | Customized Products: | Yes |
| Highlight: | Preformed ACSR Conductor splice,ACSR Full tension Splice,535mm Preformed Wire Splice |
||

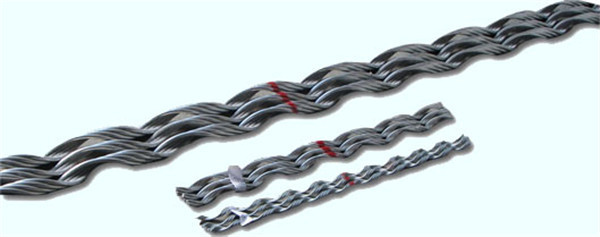

Full tension splice for ACSR
Full tension splice for ACSR is designed as athree component assembly for ACSR splice.It is used for restorative repair for the core damaged conductor of ACSR.The holding strenth is not less than 95% of the rated breaking strength of the conductor and provide better conductance than an equal length of unspliced conductor.During installation,care should be taken to ensure a successful installation .This product is intended for use by trained crafts people only.
| Model | Suitable Conductor Dia(mm) | GB1179-1983 Suitable Conductor | Color Code | Clamp Length(mm) |
|
| MIN | MAX | LGJ/LGJF Steel Reinforced Aluminium Conductor | |||
| TJ 4110 | 4.40 | 4.90 | 10/2 | Red | 535 |
| TJ 4111 | 5.30 | 5.70 | 16/3 | Yellow | 585 |
| TJ 4112 | 6.60 | 7.10 | 25/4 | Blue | 695 |
| TJ 4113 | 8.00 | 8.60 | 35/6 | Green | 510 |
| TJ 4114 | 9.40 | 9.80 | 50/8 | Black | 635 |
| TJ 4115 | 11.30 | 11.75 | 50/30,70/10 | Red | 645 |
| TJ 4116 | 13.30 | 13.80 | 70/40,95/15 | Yellow | 785 |
| TJ 4117 | 13.81 | 14.00 | 95/20 | Blue | 795 |
| TJ 4118 | 14.41 | 15.10 | 120/7,120/20 | Green | 930 |
| TJ 4119 | 15.60 | 16.20 | 95/55,120/25,150/8 | Black | 990 |
| TJ 4120 | 16.50 | 17.00 | 150/20 | Red | 1020 |
| TJ 4121 | 17.01 | 17.60 | 150/25,150/35 | Yellow | 1060 |
| TJ 4122 | 17.80 | 18.20 | 120/70,185/10 | Blue | 1100 |
| TJ 4123 | 18.60 | 19.20 | 185/25,185/30,210/10 | Green | 1126 |
| TJ 4124 | 19.50 | 20.10 | 185/45,210/25 | Black | 1183 |
| TJ 4125 | 20.20 | 20.96 | 210/35,210/50 | Red | 1195 |
| TJ 4126 | 21.50 | 21.64 | 240/30 | Yellow | 1223 |
| TJ 4127 | 21.65 | 22.50 | 240/40,240/55 | Blue | 1411 |
| TJ 4128 | 22.90 | 23.50 | 300/15,300/20 | Green | 1471 |
| TJ 4129 | 23.60 | 24.30 | 300/25,300/40,300/50 | Black | 1510 |
| TJ 4130 | 24.90 | 25.40 | 300/70 | Red | 1497 |
| TJ 4131 | 26.50 | 27.10 | 400/20,400/25,400/35 | Green | 1631 |
| TJ 4132 | 27.50 | 27.90 | 400/50 | Blue | 1615 |
| TJ 4133 | 27.91 | 28.20 | 400/65 | Green | 1747 |
| TJ 4134 | 29.00 | 29.50 | 400/95 | Black | 1793 |
| TJ 4135 | 29.80 | 30.20 | 500/35,500/45 | Red | 1805 |
| TJ 4136 | 30.80 | 31.20 | 500/65 | Yellow | 1818 |
Products can be customized according to customer requirements.
