| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | DX5000 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 3-30 per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000 sets per month |
| Material: | Galvanized Steel,Aluminum Clad Steel | Product Length: | 300-3000mm |
|---|---|---|---|
| End Processing: | Ball End | Length Tolerance Between End Wire: | 0-3mm |
| Grip Strenth: | Not Less Than 10-15% RTS Of Strand | Helical Direction: | Left Hand Is Standard |
| Sandard: | GB,or According To Customer Requirements | Customized Products: | Yes |
| Highlight: | <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>19W AGS Suspension Clamp</h2>, <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>19W ags strand Clamp</h2>, <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>HLLP AGS Suspension Clamp</h2> | ||
| Highlight: | 19W AGS Suspension Clamp,19W ags strand Clamp,HLLP AGS Suspension Clamp |
||

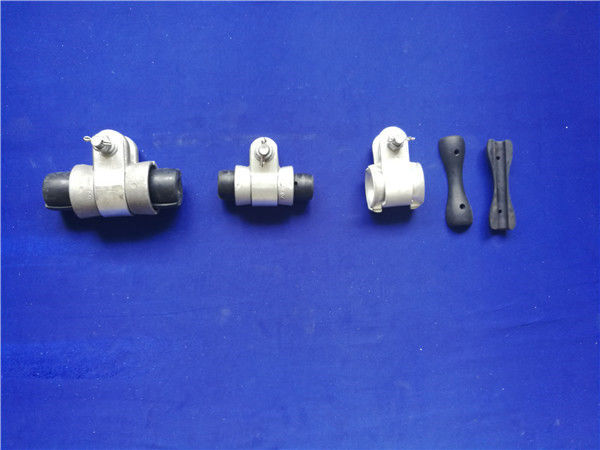

Armor Grip Suspensionfor strands
Armor Grip Suspensionfor strandsisintended for use ongalvanized steel or aluminum clad steel strandsinstallation in power transmissionlines.The product is designed as a complex of components toreduce the static and dynamic stresses at the support point,the fatigue resistance of strandsis greatly improved.Double support suspension products are available.During installation,care should be taken to ensure a successful installation.This product is intended foruseby trained craftspeople only.

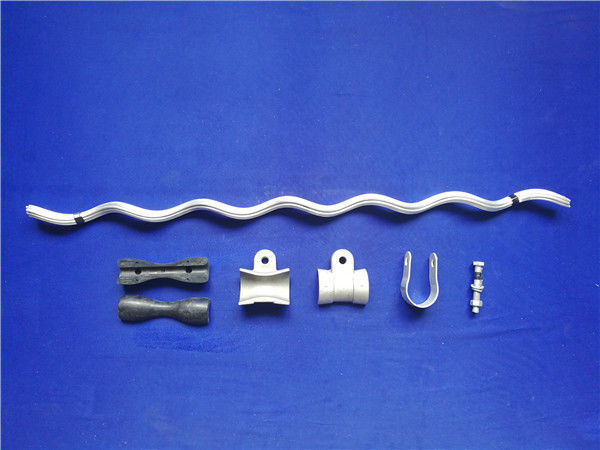

Armor Grip Suspension for conductor consists of the following parts:
1, Armor Rods . material: galvanized steeland Aluminum Clad Steel.
2, Housing, material: High-Strength Aluminum Alloy.
3, Insert. material: EPDM rubber,aluminum alloy reinforcement .
4, U clamp, material: High-Strength Aluminum Alloy orGalvanized Steel.
5, Bolt. material: Galvanized Steel.
Armor Grip Suspensionfor galvanized steel strand
Single/ Double Model | DL/T763-2001Standard Control | (mm) Conductor Dia.(mm) | GB 1200-75 Suitable Conductor | Length(mm) | color code | ||
| MIN | MAX | (mm) | Configuration | ||||
| DX 5410 | CL-1/G | 6.90 | 7.20 | 7.0 | 19W | 660 | Yellow |
| DX 5910 | CL-1/GS | 960 | |||||
| DX 5411 | CL-4/G | 7.72 | 8.01 | 7.8(35) | 7W | 660 | Red |
| DX 5911 | CL-4/GS | 960 | |||||
| DX 5412 | CL-6/G | 8.32 | 8.69 | 8.4 | 7W | 660 | Blue |
| DX 5912 | CL-6/GS | 960 | |||||
| DX 5413 | CL-7/G | 8.70 | 9.03 | 9.0(50) | 7W/19W | 660 | Green |
| DX 5913 | CL-7/GS | 960 | |||||
| DX 5414 | CL-9/G | 9.53 | 9.89 | 9.6 | 7W | 660 | Black |
| DX 5914 | CL-9/GS | 960 | |||||
| DX 5415 | CL-10/G | 9.90 | 10.27 | 10.0 | 19W | 900 | Yellow |
| DX 5915 | CL-10/GS | 1220 | |||||
| DX 5416 | CL-11/G | 10.28 | 10.62 | 10.5 | 7W | 900 | Red |
| DX 5916 | CL-11/GS | 1220 | |||||
| DX 5417 | CL-12/G | 10.63 | 11.03 | 11(70) | 19W | 900 | Blue |
| DX 5917 | CL-12/GS | 1220 | |||||
| DX 5418 | CL-13/G | 11.04 | 11.43 | 11.4 | 7W | 900 | Green |
| DX 5918 | CL-13/GS | 1220 | |||||
| DX 5419 | CL-15/G | 11.96 | 12.22 | 12 | 7W/19W | 900 | Black |
| DX 5919 | CL-15/GS | 1220 | |||||
| DX 5420 | CL-16/G | 12.23 | 12.70 | 12.5(95) | 19W | 1143 | Red |
| DX 5920 | CL-16/GS | 1440 | |||||
| DX 5418 | CL-13/G | 11.04 | 11.43 | 11.4 | 7W | 900 | Green |
| DX 5918 | CL-13/GS | 1220 | |||||
| DX 5419 | CL-15/G | 11.96 | 12.22 | 12 | 7W/19W | 900 | Black |
| DX 5919 | CL-15/GS | 1220 | |||||
| DX 5420 | CL-16/G | 12.23 | 12.70 | 12.5(95) | 19W | 1143 | Red |
| DX 5920 | CL-16/GS | 14 | |||||
Products can be customized according to customer requirements.
