| Place of Origin: | CHENGDU CHINA |
|---|---|
| Brand Name: | HLLP |
| Model Number: | DX5100 |
| Minimum Order Quantity: | 100 sets |
| Price: | US$ 3-30 per set |
| Packaging Details: | Carton pallets,wooden cases, or as required by customer |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000 sets per month |
| Material: | Aluminum Alloy,Aluminum Clad Steel | Product Length: | 300-3000mm |
|---|---|---|---|
| End Processing: | Ball End | Grip Strenth: | Not Less Than 18% RTS Of Conductor |
| Helical Direction: | Right Hand Is Standard | Sandard: | GB,or According To Customer Requirement |
| Customized Products: | Yes | Highlight: | <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>8.03mm Preformed Suspension Set</h2>, <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>HLLP Preformed Suspension Set</h2>, <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>8.03mm conductor Suspension Set</h2> |
| Highlight: | 8.03mm Preformed Suspension Set,HLLP Preformed Suspension Set,8.03mm conductor Suspension Set |
||

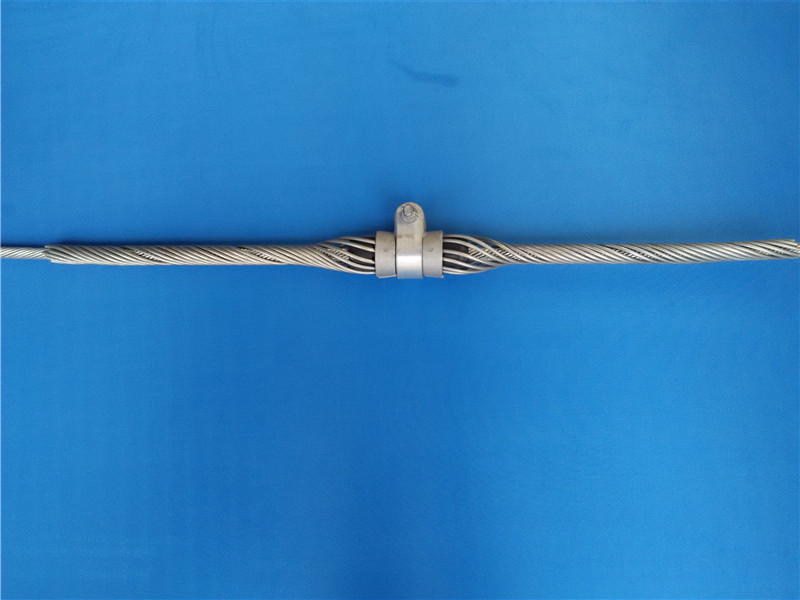

Preformed Suspension setfor conductor
PreformedSuspension setfor conductor isintended for use on all aluminum based conductorsinstallation in power transmissionlines.The product is designed as a complex of components toreduce the static and dynamic stresses at the support point,the fatigue resistance of conductor is greatly improved.Double support suspension products are available.During installation,care should be taken to ensure a successful installation.This product is intended foruseby trained craftspeople only.

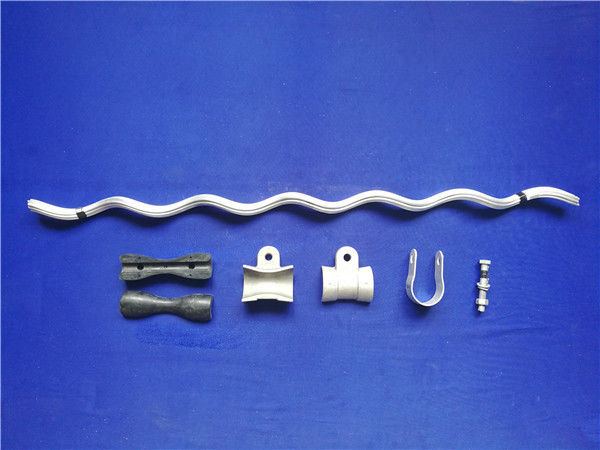

Armor Grip Suspension for conductor consists of the following parts:
1, Armor Rods . material: Aluminum Alloy and Aluminum Clad Steel for ACSR and AAAC,Ball end.Right lay is standard.
2, Housing, material: High-Strength Aluminum Alloy.
3, Insert. material: EPDM rubber,aluminum alloy reinforcement .
4, U clamp, material: High-Strength Aluminum Alloy.
5, Bolt. material: Galvanized Steel.
Vertical ultimate load:not less 50kN.
Slip load:not less 18% RTS of the conducto
Standard Armor Rods have dimensions which are different from AGS Rods and cannot be substituted.

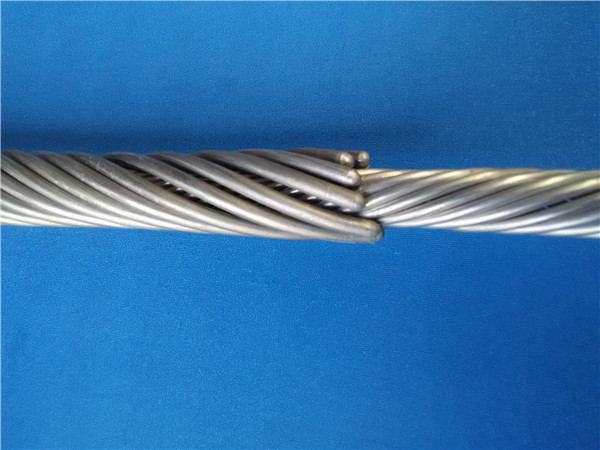

Ball End Rod: Rod has a Ball End for non-EHpation. PARROT-BIL
Single/ Double Model | (mm) Conductor Dia.(mm) | Length (mm) | Color Code | |
| MIN | MAX | |||
| DX 5111 | 8.03 | 8.31 | 662 | Yellow |
| DX 5611 | 972 | |||
| DX 5112 | 9.53 | 9.88 | 662 | Black |
| DX 5612 | 970 | |||
| DX 5113 | 11.05 | 11.45 | 916 | Blue |
| DX 5613 | 1120 | |||
| DX 5114 | 11.46 | 11.94 | 916 | Green |
| DX 5614 | 1220 | |||
| DX 5116 | 13.49 | 13.78 | 1043 | Red |
| DX 5616 | 1350 | |||
| DX 5117 | 13.79 | 14.10 | 1120 | Yellow |
| DX 5617 | 1472 | |||
| DX 5118 | 14.11 | 14.56 | 1120 | Black |
| DX 5618 | 1470 | |||
| DX 5119 | 14.57 | 15.10 | 1144 | Blue |
| DX 5619 | 1472 | |||
| DX 5120 | 15.75 | 16.39 | 1270 | Green |
| DX 5620 | 1680 | |||
| DX 5121 | 16.40 | 17.10 | 1374 | Red |
| DX 5621 | 1832 | |||
| DX 5122 | 17.11 | 17.54 | 1374 | Yellow |
| DX 5622 | 1832 | |||
| DX 5123 | 17.55 | 18.04 | 1374 | Black |
| DX 5623 | 1832 | |||
| DX 5124 | 18.59 | 19.00 | 1424 | Blue |
| DX 5624 | 1832 | |||
| DX 5125 | 19.52 | 20.10 | 1527 | Green |
| DX 5625 | 1980 | |||
| DX 5126 | 20.11 | 20.94 | 1551 | Red |
| DX 5626 | 1982 | |||
| DX 5127 | 21.48 | 22.09 | 1628 | Yellow |
| DX 5627 | 2082 | |||
| DX 5128 | 22.10 | 22.69 | 1653 | Black |
| DX 5628 | 2082 | |||
| DX 5129 | 22.70 | 23.05 | 1653 | Blue |
| DX 5629 | 2082 | |||
| DX 5130 | 23.39 | 23.79 | 1678 | Green |
| DX 5630 | 2292 | |||
| DX 5131 | 23.80 | 24.45 | 1702 | Red |
| DX 5631 | 2292 | |||
| DX 5132 | 25.08 | 25.54 | 1755 | Yellow |
| DX 5632 | 2292 | |||
| DX 5134 | 26.43 | 27.29 | 2085 | Black |
| DX 5634 | 2742 | |||
| DX 5135 | 27.30 | 27.69 | 2100 | Blue |
| DX 5635 | 2745 | |||
| DX 5136 | 27.70 | 28.40 | 2100 | Green |
| DX 5636 | 2745 | |||
| DX 5137 | 28.88 | 29.26 | 2100 | Red |
| DX 5637 | 2745 | |||
